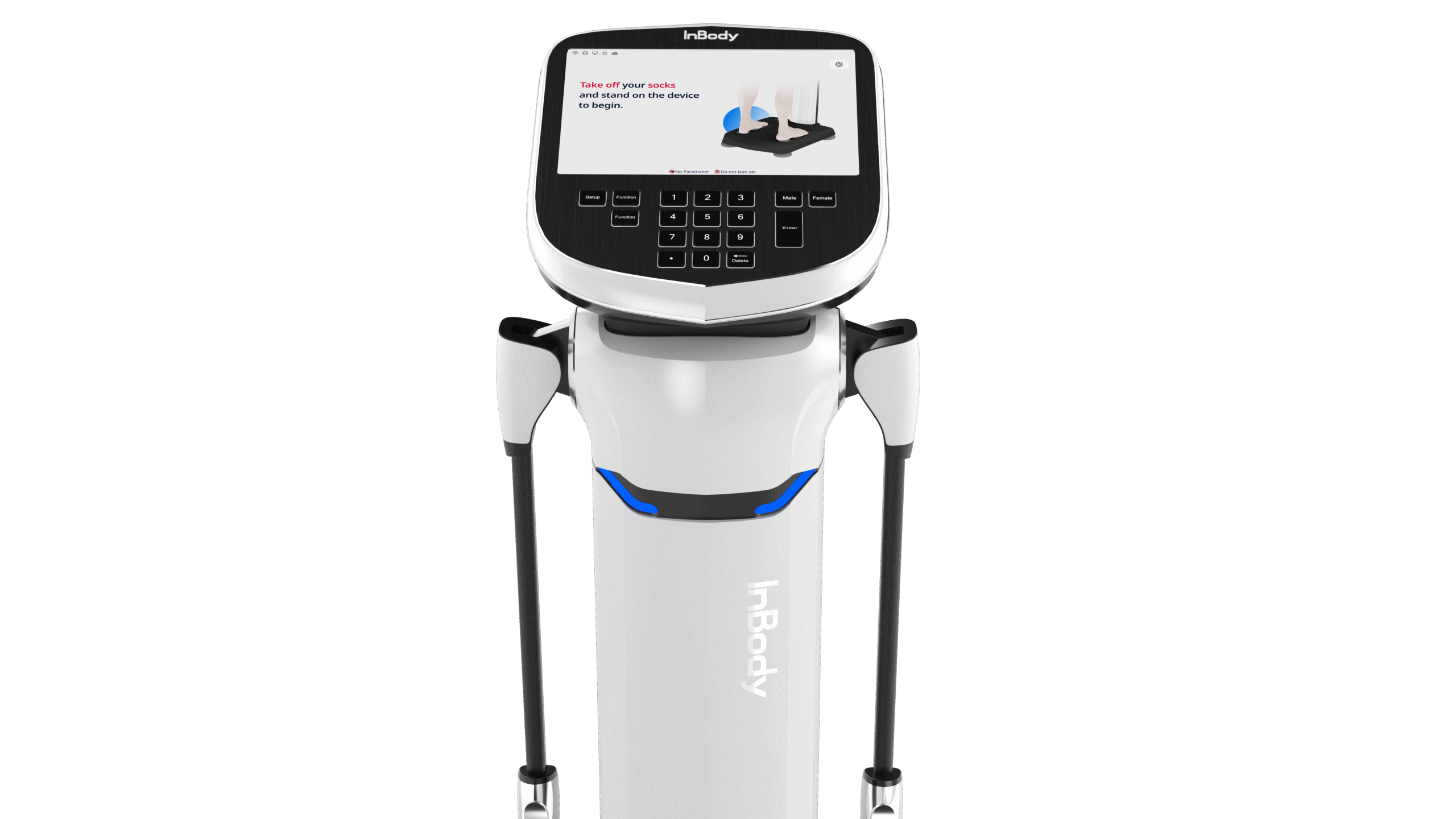

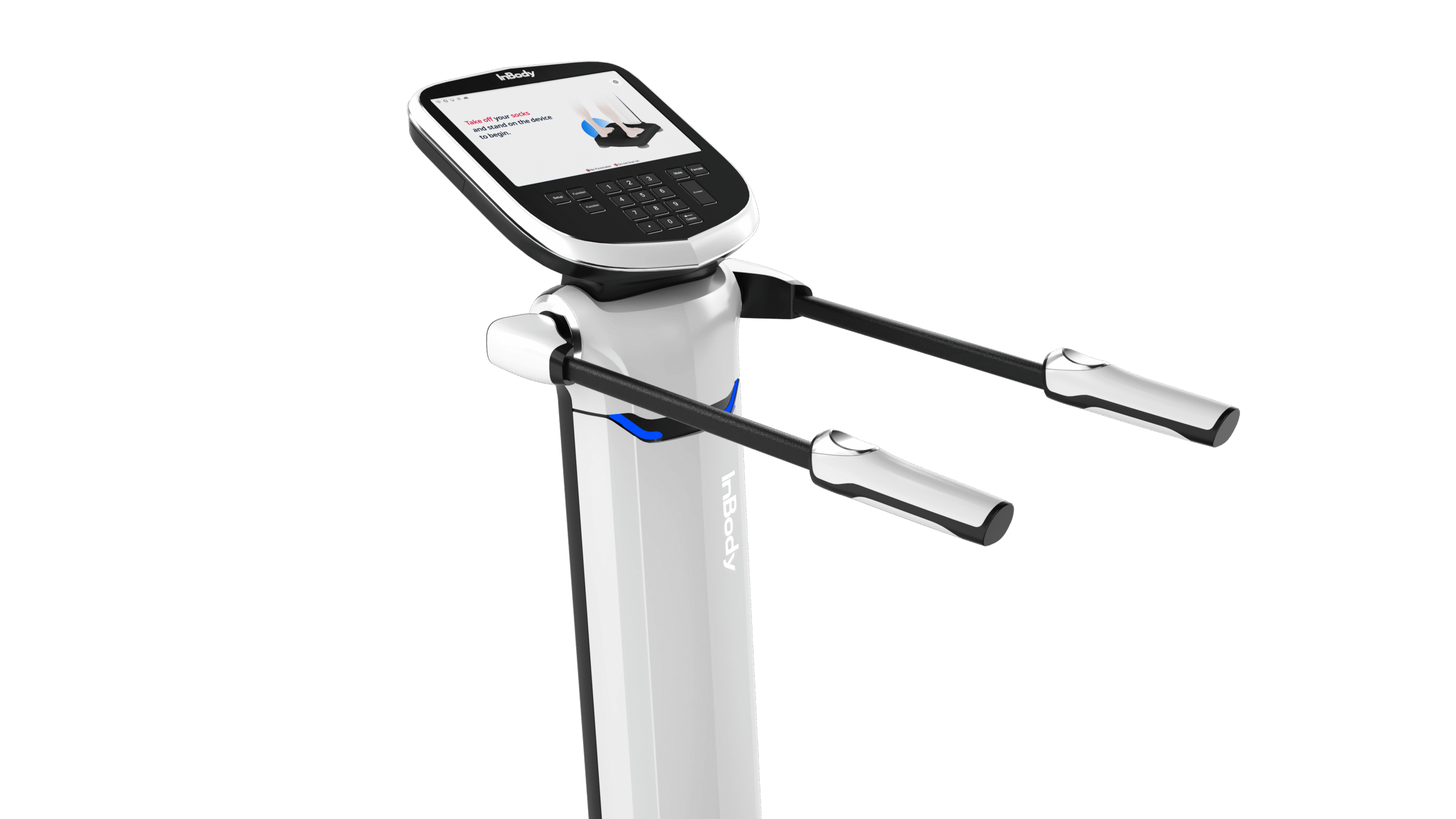

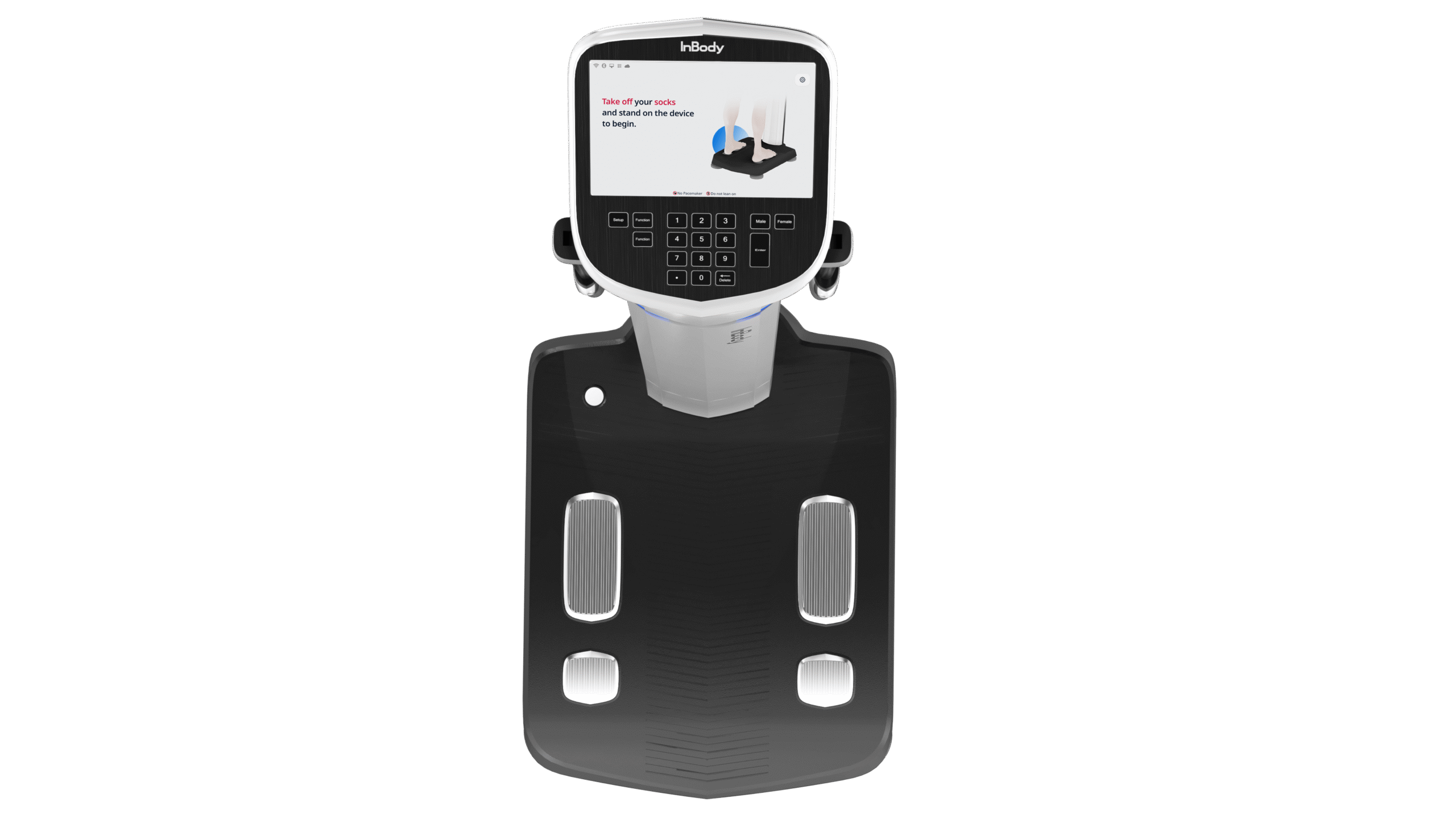

INBODY 580

INBODY 580 Core Measurement Capabilities

1. The InBody 580 provides body composition analysis.
   • It analyses and breaks down the body into total body water, protein, minerals, fat mass and skeletal mass
2. It evaluates the segmental distribution of body mass – allowing measurement of both limbs and trunk separately
   • This helps identify imbalances in muscle or fat distribution
3. It also measures visceral fat (fat around the organs) by volume
   • This provides insight into hidden fat stores and its risk for metabolic diseases

How it works

1. The client takes their height and weight on the associated Stadiometer
2. The client is asked to stand on the Inbody 580 scanner, barefoot and in loose clothing with no metal implants or devices on his/her body
3. Their feet make contact with electrodes on the stand and they are asked to hold the two hand electrodes, ensuring to have their arms away from the body
4. The InBody 580 performs the scan by passing a low impedance current through the electrodes. It uses the measured current levels to calculate the composition of the body.

Advanced Health Assessments

The device includes specialized outputs such as:

1. Segmental Intracellular Water (ICW) and Extracellular Water (ECW) ratios,
   • This assists in detailed monitoring of fluid balance and detection of edema and inflammation
2. Segmental Lean and Fat Analysis (arms, legs, trunk)w
   • This allows tracking changes over time for clinical follow
3. Assessing muscle loss in Sarcopenia
   • providing Skeletal Muscle Index to assess low muscle mass or fragility risk
4. Assessment of children
   • useful for monitoring growth in children aged 3-18 years using WHO and CDC reference data

Clinical and Nutritional Applications

The InBody 580 is designed for hospitals, clinics and wellness facilities to assist in

1. Nutritional assessment and obesity management
2. Diabetes and Metabolic risk evaluation – through body fat and muscle analysis
3. Monitoring Fluid imbalance and edema in patients with Kidney or Heart conditions (using ECW / TBW ratios)
4. Fitness and exercise planning by tracking muscle and fat changes over time

User-Friendly and Technological Features

1. Quick testing: Perform a full analysis in approximately 30 seconds
2. Intuitive interface: Touchscreen display, QR code scanner, and customizable result sheets for easy operation and instant data sharing
3. Connectivity: Wifi, Bluetooth and cloud integration
   • Additional data management via InBody App or LookinBody Web
4. Customizable tracking –
   • Users can monitor progress through history graphs and personalized metrics
5. Optional integrations:
   • Compatible with blood pressure monitors and handgrip dynamometers to enhance health assessments

Safety and Operational Considerations

1. The InBody 580 uses safe, low level electrical currents for bioelectrical impedance.a. Precautions are necessary for individuals with implants, metal allergies or pacemakers
2. Proper posture during measurement ensures accurate results
3. The device is not intended for diagnostic use but helps support clinical assessment

Summary

The InBody 580 is a medical grade, segmental body composition analysis device.
It is suitable for both adult and paediatric populations.
It allows support for clinical, nutritional and fitness evaluations
